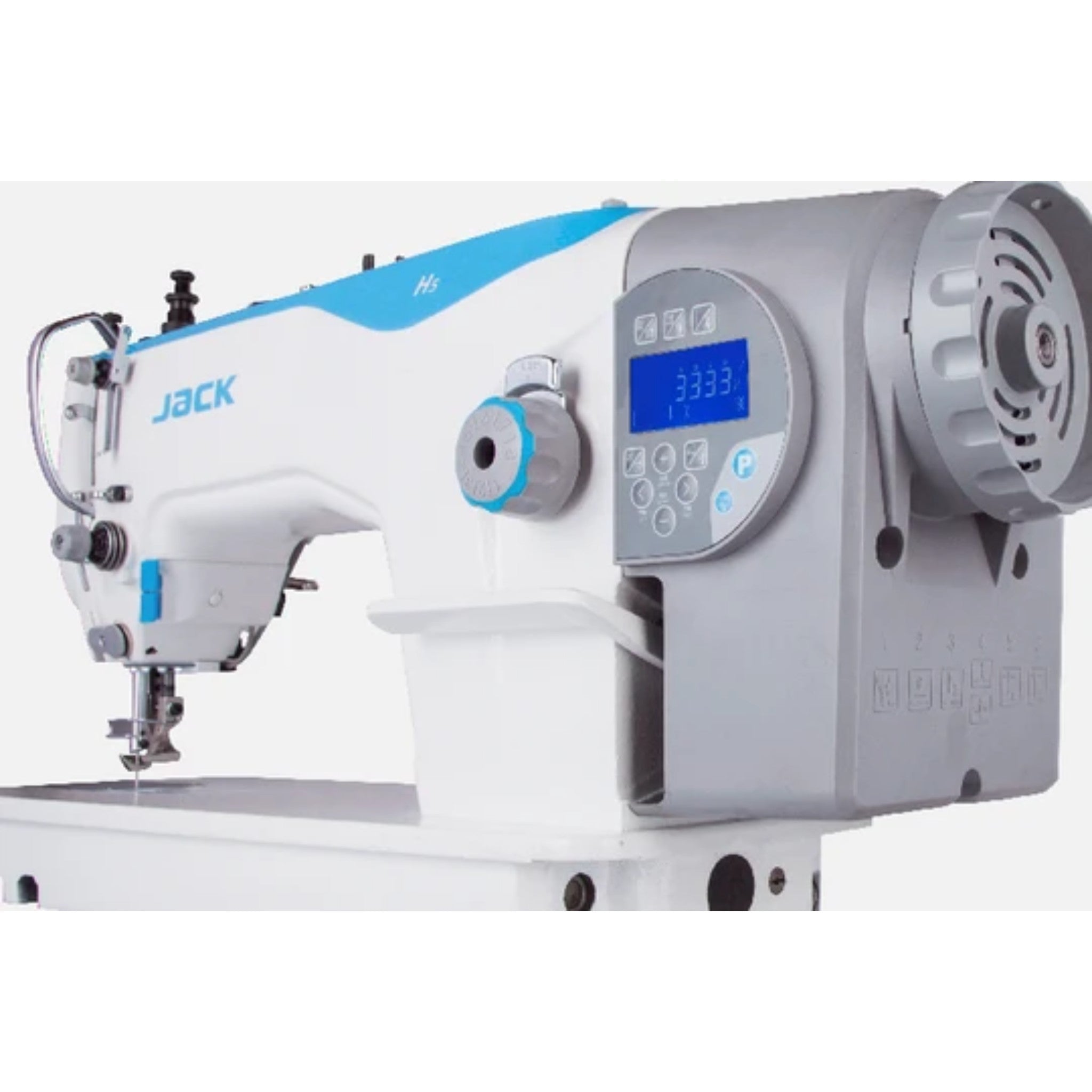

Jack H5
Top & Bottom Feeding Computerized Lockstitch
For heavy materials, high efficiency
Top and Bottom feeding, 750W motors, extremely for heavy materials, sewing for 10 layers of leather with beautiful stitches.
Stable overlapping stitch, good quality
Realize 6 stitches overlapping, suitable for most of technological requirements, good quality.
Sealed oil pan design, no oil, no trouble
Sealed presser foot lifter shaft, oil free with imported solid grease lubrication.
Integrated, Easy to Install
Integrated, stable and reliable; Easy to install, very convenient.
One Shaft Design, peaceful and stable
One shaft design reduces the machine torque and makes feeding more stable. It is durable with low noise.
Factory Reset
Users can reset to own parameters and out of factory parameters according to requirement. It is easy to operate and meets all sewing technological requirements. No need to worry about wrong operation.
Model | H5-CZ-3 |
Needle | DPx17 20-23# |
Thread no. | 2 |
Stitch Length (mm) | 8 |
Presser Foot Lifting Height
(mm)
|
7.5 -16 |
Max Speed(S.p.m)
|
2000 |
Volume(mm)
|
725x285x580 |
Weight(kg)
|
40.5/43 |
